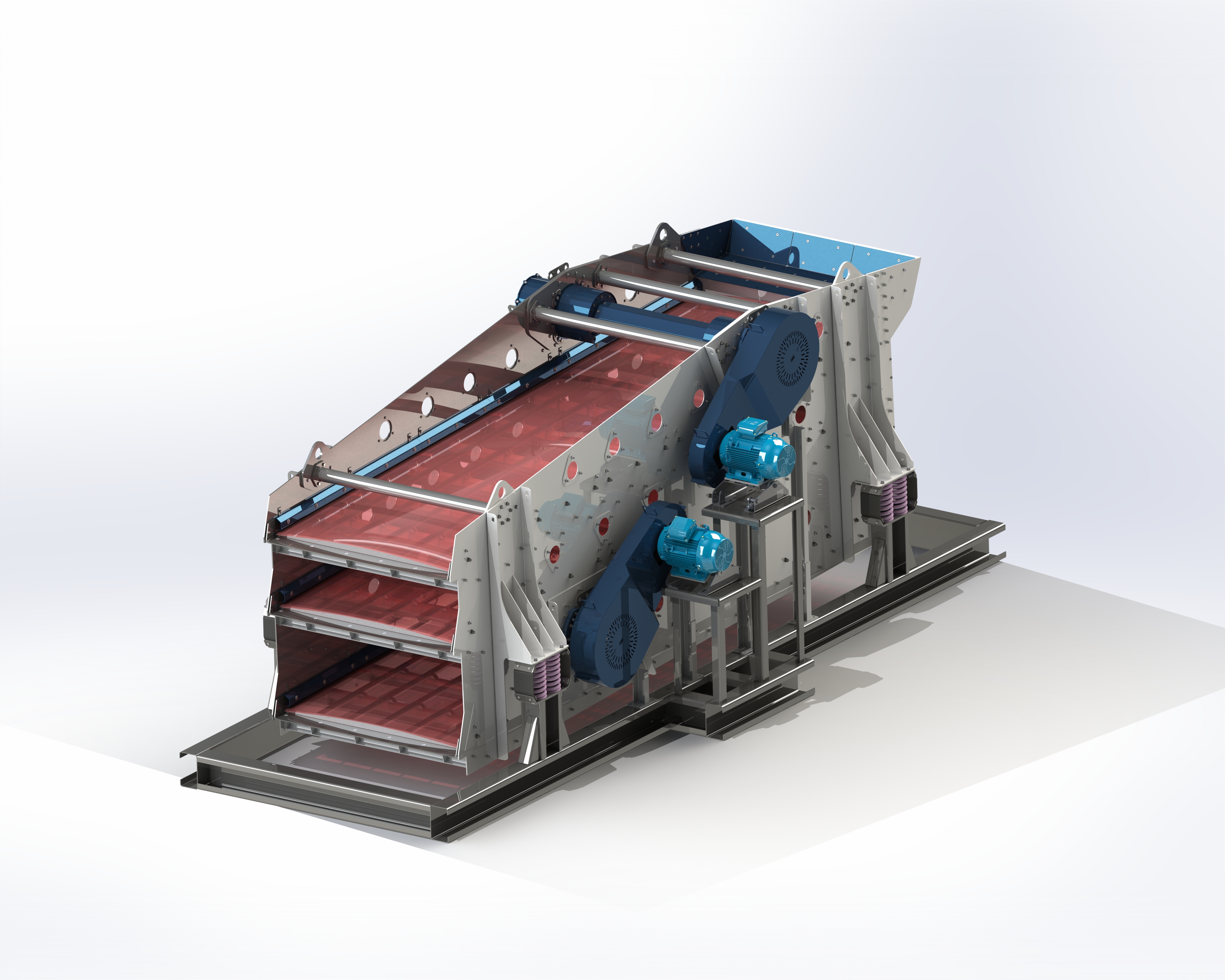

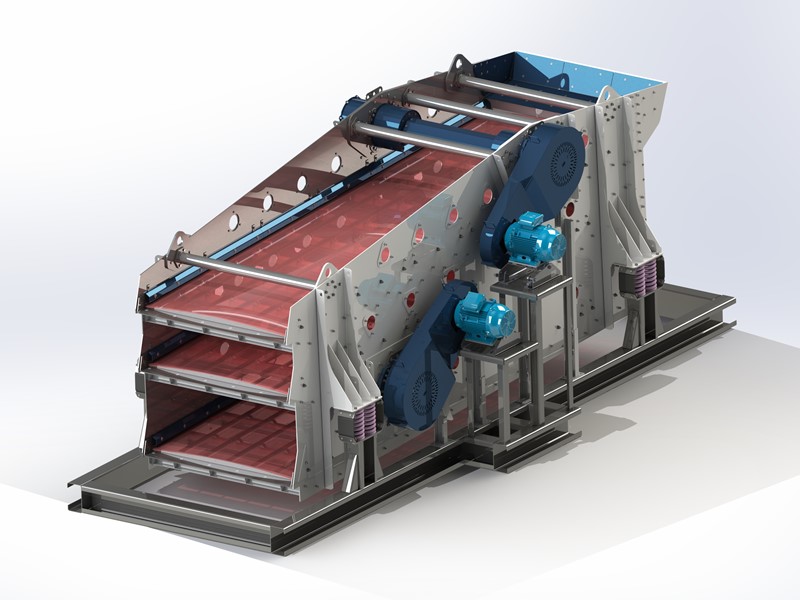

Horizontal Screen

Horizontal Screen

STANDARD FEATURES

• Horizontal elliptical motion screen

• Universal deck design

• Adjustable screen angle 0-10°

• MVU vibrators provide easy/accessible maintenance

• Adjustable stroke and RPM parameters

• Deep and long integrated feedbox to allow easy

  interface with feed conveyor

• Huck bolted design

• Replaceable rubber liners in hard wearing areas

• Optional cross member lines are available

• Weld free side walls and cross members



SIZING

SHV-B Series:     1 870 x 4 880 mm (6' x 16')            9 m² (96 ft²)

SHV-C Series:     1 870 x 6 100 mm (6' x 20')            11 m² (120 ft²)

SHV-D Series:     2 480 x 6 100 mm (8' x 20')            15 m² (160 ft²)



For further details and information please download our brochure.
